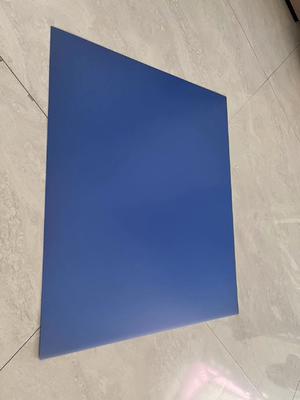

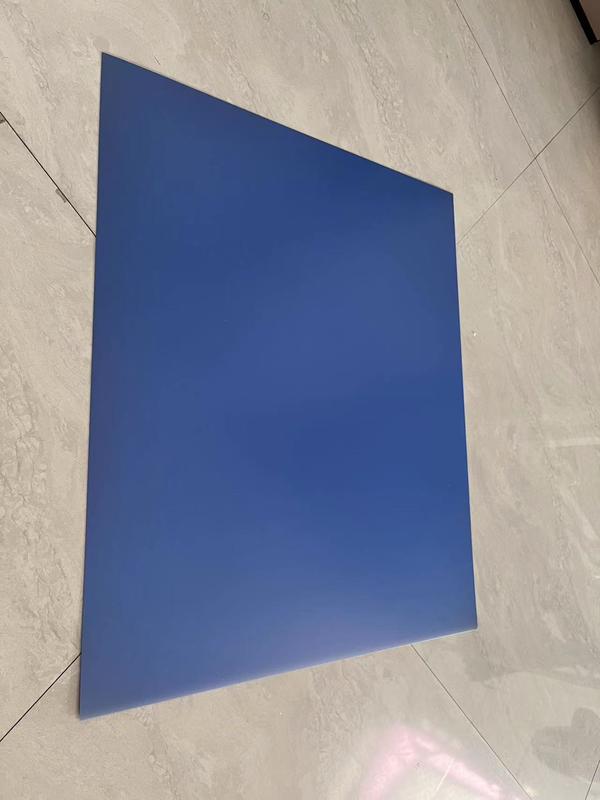

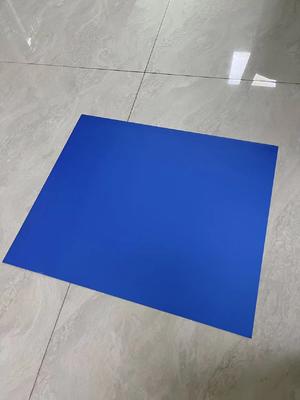

Yellow Safe Light CTCP Plates 0.15mm/0.30mm Thickness 120-140mJ/cm2

제품

PS 플레이트

연락주세요

CTPplate1@cd-printing.com

+8615813828491

지금 접촉하세요

Yellow Safe Light CTCP Plates 0.15mm/0.30mm Thickness 120-140mJ/cm2

MOQ:	5000sqm
가격:	협상 가능
표준 포장:	0.15mm Is 100 Sheets/box,0.30mm Is 50 Sheets/box
배달 기간:	10 Working Day
지불 방법:	TT
공급 능력:	1000000sqm Per Month

자세한 정보

제품 설명

자세한 정보

브랜드 이름

PLATE-CD

Model Number

레이저 에너지:

120-140mj/cm2

긍정적 CTCP 플레이트

제품 유형:

CTCP 플레이트

450*370*0.15mm, 745*605*0.30mm

노광 에너지:

50-85mj/cm2

저장 수명:

20개월 됐어요

강조하다:

Yellow Safe Light CTCP Plates

CTCP Printing Plates with warranty

Laser Energy CTCP Plates 120-140mJ/cm2

제품 설명

Yellow Safe Light CTCP Plates with Laser Energy 120-140mJ/cm² and Plate Thickness 0.15mm/0.30mm

Product Overview

CTCP Printing Plates represent cutting-edge technology for computer-to-plate offset machine printing, delivering enhanced efficiency and superior print quality. Engineered for compatibility with modern printing systems, these plates offer exceptional longevity and performance.

Key Specifications

Type: Positive CTCP Plates
Laser Energy: 120-140mJ/cm²
Thickness Options: 0.15mm or 0.30mm
Shelf Life: 20 months
Print Yield: 60,000-80,000 impressions per plate
Rinse Temperature: 23-26℃

Technical Features

UV-Sensitive: Compatible with UV-LED/mercury lamps
High Resolution: 10-20 μm (1%-98% dots at 200 lpi)
Extended Run Length: 50,000–200,000+ impressions
Processing: Uses standard developer chemistry
Cost-Effective: Lower plate cost vs. thermal/violet CTP
Sustainable Solution: Reduced specialized material waste

Applications

Ideal for commercial printing, packaging, and publishing applications requiring high-quality computer-to-plate offset printing:

Commercial printing operations
Packaging manufacturers
Publishing houses
High-volume printing projects

Ordering Information

Attribute	Details
Brand Name	PLATE-CD
Model Number	CD-V
Origin	Henan
Minimum Order Quantity	5000sqm
Packaging	0.15mm: 100 sheets/box 0.30mm: 50 sheets/box
Delivery Time	10 working days
Supply Capacity	1,000,000sqm/month

Frequently Asked Questions

What is the brand name of the printing plates?

The brand name is PLATE-CD.

What is the model number?

The model number is CD-V.

Where are the plates manufactured?

The plates are manufactured in Henan.

What is the minimum order quantity?

The minimum order quantity is 5000sqm.

What are the packaging details?

0.15mm plates come in 100 sheets/box, and 0.30mm plates come in 50 sheets/box.

태그:

제품

MOQ:	5000sqm
가격:	협상 가능
표준 포장:	0.15mm Is 100 Sheets/box,0.30mm Is 50 Sheets/box
배달 기간:	10 Working Day
지불 방법:	TT
공급 능력:	1000000sqm Per Month

자세한 정보

제품 설명

자세한 정보

브랜드 이름

PLATE-CD

Model Number

CD-V

안전광:

노란색

레이저 에너지:

120-140mj/cm2

유형:

긍정적 CTCP 플레이트

제품 유형:

CTCP 플레이트

크기:

450*370*0.15mm, 745*605*0.30mm

노광 에너지:

50-85mj/cm2

저장 수명:

20개월 됐어요

스타일:

긍정적인

Minimum Order Quantity:

5000sqm

가격:

협상 가능

Packaging Details:

0.15mm Is 100 Sheets/box,0.30mm Is 50 Sheets/box

Delivery Time:

10 Working Day

Payment Terms:

Supply Ability:

1000000sqm Per Month

강조하다

Yellow Safe Light CTCP Plates

CTCP Printing Plates with warranty

Laser Energy CTCP Plates 120-140mJ/cm2

제품 설명

Yellow Safe Light CTCP Plates with Laser Energy 120-140mJ/cm² and Plate Thickness 0.15mm/0.30mm

Product Overview

Key Specifications

Type: Positive CTCP Plates
Laser Energy: 120-140mJ/cm²
Thickness Options: 0.15mm or 0.30mm
Shelf Life: 20 months
Print Yield: 60,000-80,000 impressions per plate
Rinse Temperature: 23-26℃

Technical Features

UV-Sensitive: Compatible with UV-LED/mercury lamps
High Resolution: 10-20 μm (1%-98% dots at 200 lpi)
Extended Run Length: 50,000–200,000+ impressions
Processing: Uses standard developer chemistry
Cost-Effective: Lower plate cost vs. thermal/violet CTP
Sustainable Solution: Reduced specialized material waste

Applications

Ideal for commercial printing, packaging, and publishing applications requiring high-quality computer-to-plate offset printing:

Commercial printing operations
Packaging manufacturers
Publishing houses
High-volume printing projects

Ordering Information

Attribute	Details
Brand Name	PLATE-CD
Model Number	CD-V
Origin	Henan
Minimum Order Quantity	5000sqm
Packaging	0.15mm: 100 sheets/box 0.30mm: 50 sheets/box
Delivery Time	10 working days
Supply Capacity	1,000,000sqm/month

Frequently Asked Questions

What is the brand name of the printing plates?

The brand name is PLATE-CD.

What is the model number?

The model number is CD-V.

Where are the plates manufactured?

The plates are manufactured in Henan.

What is the minimum order quantity?

The minimum order quantity is 5000sqm.

What are the packaging details?

0.15mm plates come in 100 sheets/box, and 0.30mm plates come in 50 sheets/box.
